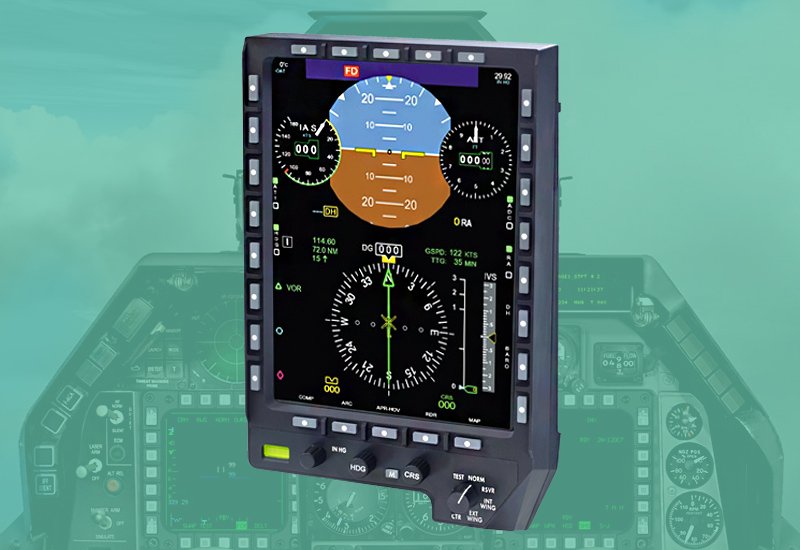

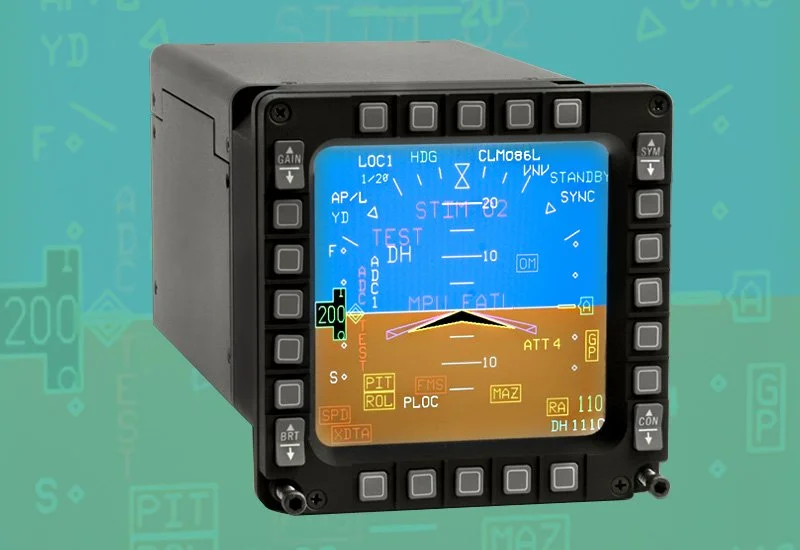

F-16 COLOR MULTIFUNCTION DISPLAY (CMFD)
Aircraft: F-16
Display Type: CMFD
512x512 Pixel Resolution
High Intensity LED Backlight
Integrated Switch Bezel
NVIS Compatible

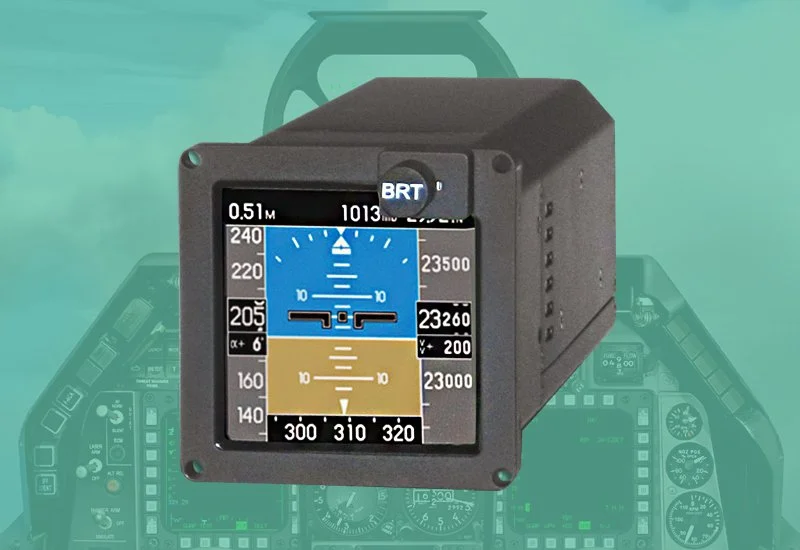

F-16 DEDICATED ELECTRONIC WARFARE DISPLAY (DEWD)
Aircraft: F-16
Display Type: DEWD
plane_icon 3 ATI Indicator
300x300 Pixel Resolution
High Intensity LED Backlight
Integrated Switch Bezel
NVIS Compatible

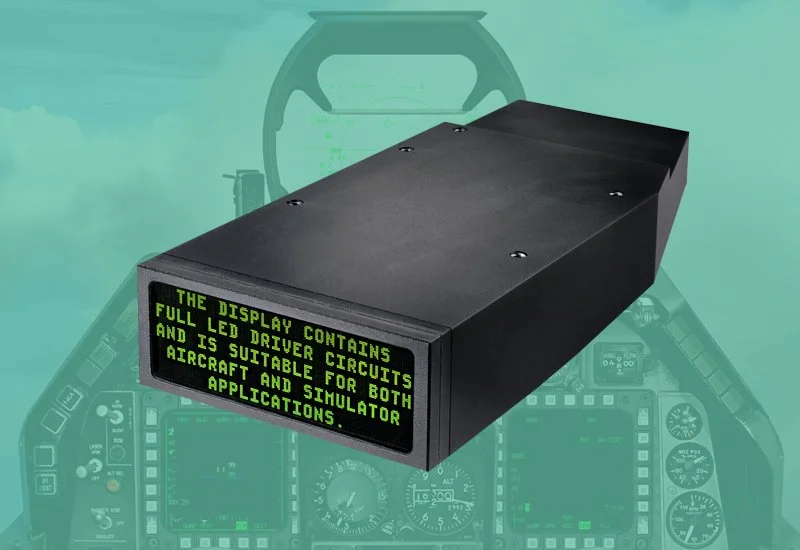

F-16 DISPLAY, DATA ENTRY / PILOT FAULT LIST (DED)
Aircraft: F-16
Display Type: DED
192x64 LED Pixel Matrix, 0.4mm (0.016") Dot Pitch
Wide Dynamic Range: NVIS Compliant to Sunlight Readable (= 0.03 fL - ≥ 200 fL)
High Performance Ultra-Bright LEDs
High Performance Custom ASIC LED Drivers
Single 5 VDC Power Supply
Chromaticity: U’=0.214, V’=0.568, R=0.05 (CIE 1976)
Character Generation Including Single, Double & Reverse (Highlight)
RS 232 Serial Encoded Data Interface.
F-16 ADVANCED THREAT DISPLAY (ATD)
Aircraft: F-16
Display Type: ATD
Exact Simulation of Terma Threat Display
Uses Custom Aircraft AMLCD for Highest Fidelity
Fully NVIS Complaint
Integrated Keyboard
Custom High Intensity LED Backlight
Wide PWM Dimming Range with 8 Bit (256 level) Control
AC or DC Power Input Options
Auto Select to Digital/Analog Video Input
F-16 CENTER PEDESTAL DISPLAY (CPD)/CENTER DISPLAY UNIT (CDU)
Aircraft: F-16
Display Type: CPD / CDU
Aircraft LCD for eaxt fidelity and color with high resolution XGA (1024x768) pixel image
Auto sync to Digital⁄Analog video input
Custom high intensity LED backlight with wide 8 Bit PWM dimming range
Integrated Switch Bezel
Integrated control panel with aircraft hardware and Kollsmans barometric display
Ethernet⁄Serial communication options
Fully NVIS compatible
CDU meets aircraft display dimensions
Custom mounting tray included for ease of pedestal installation with hand tools only
